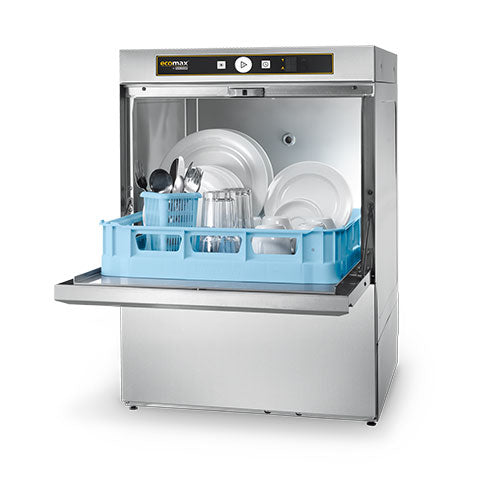

Hobart Ecomax F504W-20B Undercounter Dishwasher

Economical, high capacity and robust build quality combined with a 60 rack per hour capacity make the F504W is the perfect dishwashing solution for any busy restaurant, café or pub wishing to keep up with the demand for clean wash ware.

- Double skinned door design - reduces noise levels, improves efficiency & decreases running costs
- Indented jet nozzles – prevent blockages
- In built tank strainer – reduces soil in wash water
- Rotating wash & rinse arms – ensures even water distribution
- Electronic control with digital temperature indicator & 2 wash programs – versatile & easy use
- Optional integral water softener
- Internal rinse aid & detergent dosing pumps
- WRAS approved
- Class A airgap

Technical Information:
- Dimensions (mm): 820 x 576 x 604
- Wash Tank Loading Height (mm): 360
- Rack Size (mm): 500 x 500
- Racks Per Hour: 60
- Cycle Times (sec): 60, 150
- Water Consumption Per Cycle (L): 2.30

Electric:
- Loading 3 Phase: 3 x 16A
- Voltage 3 Phase: 5.9kW 400/50/3
- Loading Single Phase: 1 x 13A or 1 x 25A
- Voltage Single Phase: 4.1kW 230/50/1 or 2.2/230/50/1

- Download the full specification sheet here

Warranty:
- 12 Month parts & labour – provided by Hobart UK
- Extended warranties are available, please call us for up-to-date pricing and options

*We strongly recommend that equipment with an integral water softener is purchased when the unit will be sited in a hard water area.  Please view the F504SW to see the equivalent model with this functionality.  If you are unsure please call us and one of our friendly team members will be able to advise in more detail.
